Panoramic+ Padel Court

Arrow left
Arrow right

Reinforced performance for exposed locations

‍

The Panoramic+ is engineered to perform in demanding and exposed environments, with a reinforced structure capable of handling wind speeds of up to 198 km/h while maintaining excellent stability. Despite its enhanced structural performance, the court retains a sleek and lightweight appearance.

This makes it an especially strong choice for coastal venues and exposed outdoor sites, where increased protection against challenging weather conditions is required.

ENQUIRE

Panoramic+ structural engineering

Section 2 Text: The Panoramic+ Padel Court uses reinforced galvanised S275JR steel to deliver enhanced resistance to both wind and corrosion. The side and upper sections incorporate welded mesh manufactured in accordance with UNE-EN 10223-4, supported by intermediate reinforcement to improve rigidity and reduce vibration during play.

Galvanised self-locking bolts and nuts provide strong, secure connections while supporting efficient assembly. At Onpoint Sport Surfaces, each court structure is manufactured using advanced production processes to achieve consistent quality, precision and long-term reliability.

‍

The Court

Checkbox

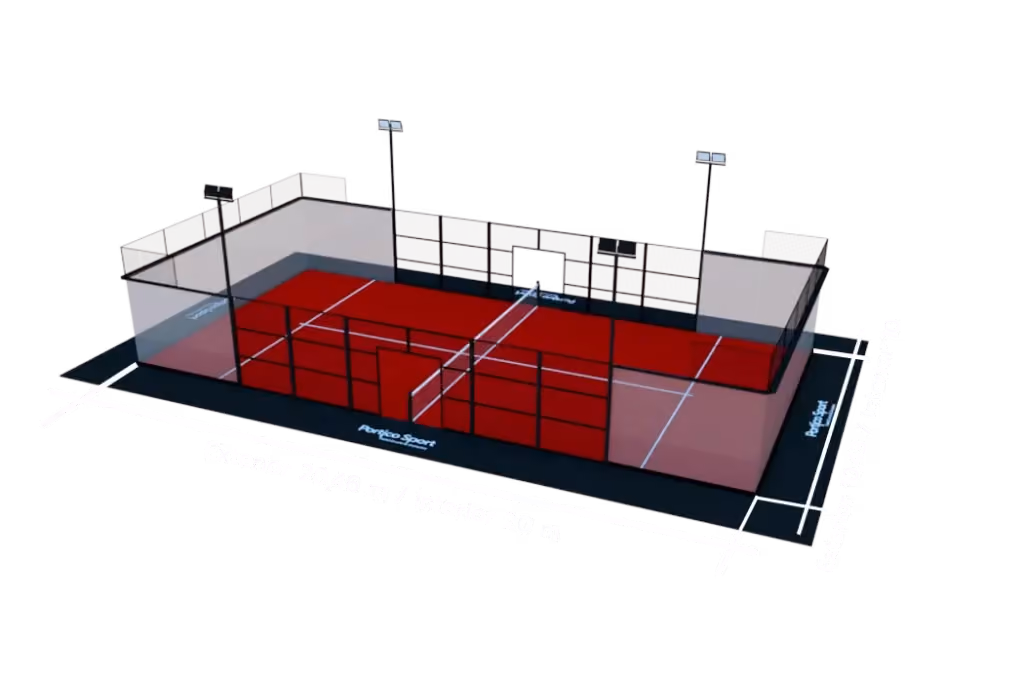

EXTERIOR length: 20.46 m x 10.43 m
Checkbox
INTERIOR length: 20 m x 10 m

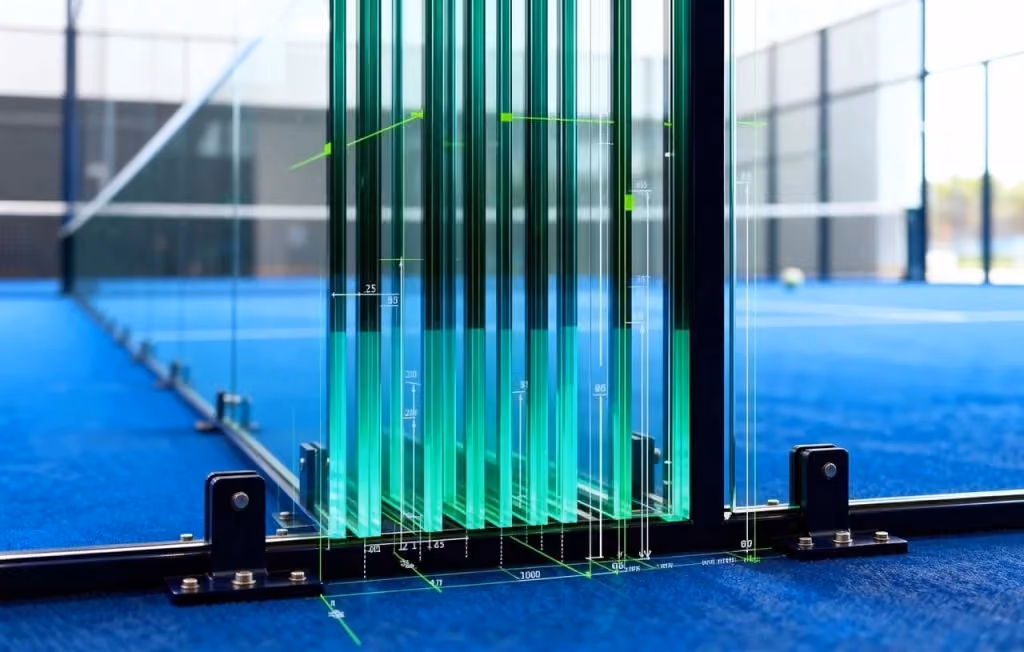

12 mm tempered safety glass

‍

Every Panoramic+ Court is equipped with 12 mm tempered safety glass manufactured to meet the relevant safety requirements. Polished edges, neoprene joints and galvanised fixings provide secure installation, excellent visibility and dependable stability.

The glass offers high impact resistance, creating a safe and professional playing environment while maintaining the clear, uninterrupted views that define the Panoramic+ design. This ensures an impressive experience for both players and spectators.

‍

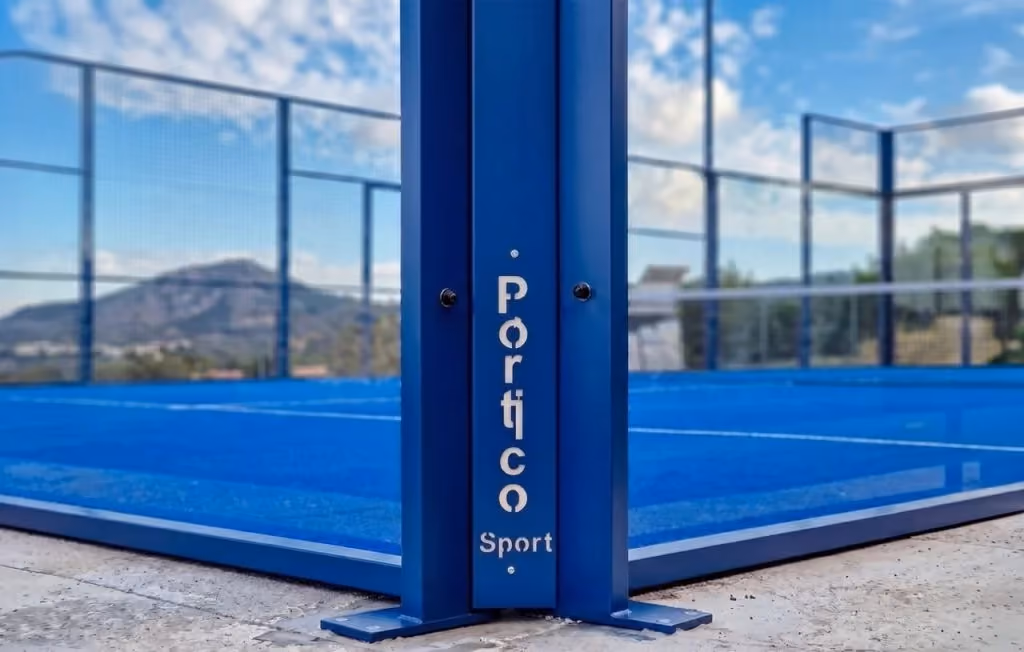

Powder-coated finishes for customised structures

‍

Create a distinctive finish with a wide selection of RAL colours in single-colour or two-tone schemes. Durable treatment options include:

  • INDOOR: electrogalvanising + powder coating
  • OUTDOOR: electrogalvanising + primer + powder coating
  • MARINE-GRADE OUTDOOR PROTECTION: electrogalvanising + special weld treatment + primer + powder coating
  • HOT-DIP GALVANISED: hot-dip galvanising (zinc bath) + primer + powder coating

Turf Options

We supply the latest-generation artificial turf from trusted European manufacturers to ensure professional playing performance. Our turf features low-abrasion, textured polyethylene fibres with UV treatment, providing high resistance to heat and changing weather conditions. Washed and dried silica-sand infill, at 10–15 kg/m², ensures optimal ball bounce, while a range of colours and fibre types allows the surface to be tailored to suit each project.

Section of artificial turf with blue, curly synthetic fibers standing upright on a black base mesh.

Curly Turf

A synthetic system composed of curly, textured fibres.

Close-up of a blue artificial turf section showing upright plastic blades on a textured black base with a gray infill material below the blades.

Straight Turf

An advanced artificial turf system with premium straight fibres.

LED Lighting Options

Arrow left
Arrow right

The Benefits

Certificate icon

10-year warranty

Long-term confidence in structural performance and durability

Lightweight icon

High wind resistance

Engineered to withstand wind speeds of up to 198 km/h

Steel beam icon

Flexible installation

Suitable for indoor and outdoor venues with a refined design that complements its surroundings

Building Courts. Creating Communities!

Are you looking to install a padel court or tennis court at your sport centre or home? If so, get in touch with our team today!
